SPECIFICATIONS

Battery Included: Yes

Brand Name: sincoole

Hign-concerned Chemical: None

Model Number: ST9-J

Origin: Mainland China

Package: Yes

Type: Embedded Computer

This link is for the standard version of rugged tablet and 2D Barcode（N1）. If you need to add optional modules/OEM, please contact customer service.

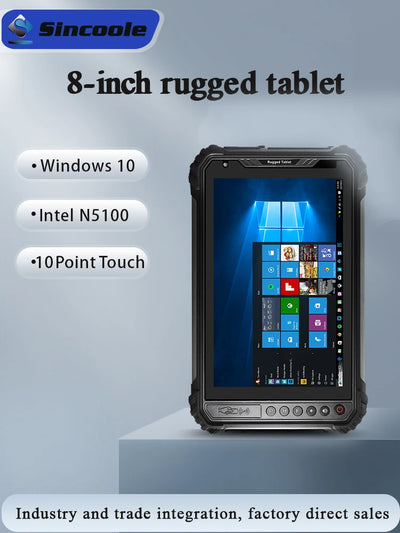

Main features(8inch):

1. I5-8200Y windows 10 pro rugged tablet 64BITS

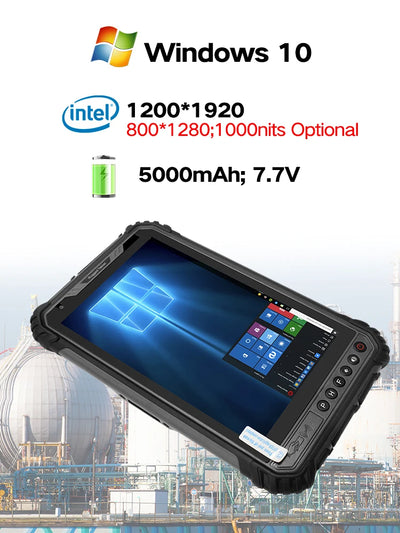

2. 8Inch 1920*1200 solution, 400nits

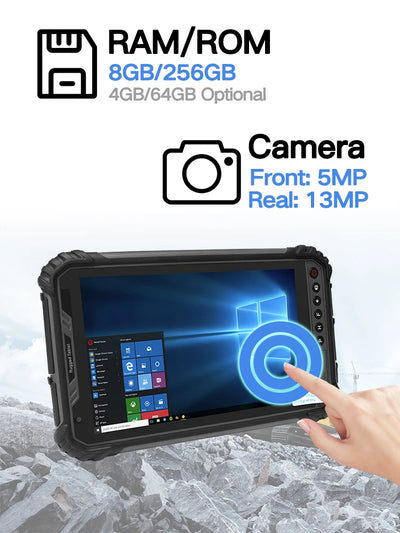

3.RAM/ROM 8GB+256GB8, 4GB+64GB (optional)

4. 5000mAh 7.7V, 4.0*1.7 DC charger

5. 4G LTE/WIFI/GPS/BT/NFC

6. Camera: front: 5 million Pixels, rear: 13 million Pixels, flash lighting function.

7. interface ports: USB3.0*2, RJ45, bottom pogo pin, back pogo pin, microphone + earphone, RS232, HDMI.

8,Optional: 1D/2D Barcode.

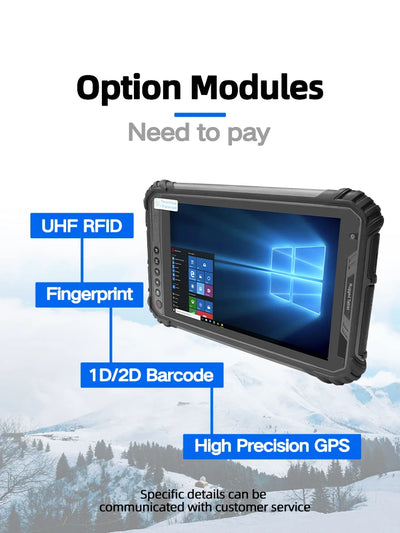

9,Optional:UHF/RFID, Fingerprint, High Precision GPS.

ST9-J SPEC
ITEM	DESCRIPTION	DETAIL
OS	Windows 10 Pro	Windows 11 Pro Optional
CPU	Intel Celeron N5100(Quad Core, Quad Threads; 1.10GHz)	Turbo can reach 2.80GHz
GPU	UHD Graphics 24 EUs
RAM/ROM	8GB/256GB	4GB/64GB Optional
LCD	8 inch; 1200*1920; 400nits (MAX)
Touch Screen	10 Point Touch	Support stylus
Camera	Front: 5MP;Real: 13MP
Power and Battery	5000mAh; 7.7V
WWAN	Default : SLM770A-SA LTE FDD:B1/2/3/4/5/7/8/28/66 LTE TDD:B40 WCDMA:B1/2/4/5/8 GSM:850/900/1800/1900	Optional：(North America/South America) SLM750-VA AMERICA LTE-FDD:B2/4/5/12/13/17/25/26 LTE-TDD:B41 WCDMA:B2/4/5 GSM:850/1900
GPS	BDS, GPS, GLONASS
WIFI	802.11a/b/g/n/ac Wireless InternetWireless AP ( Mobile AP )2.4G, 5G	Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
BLUETOOTH	4.2 Version	Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
NFC	13.56 MHz, Distance: 1-3cm	ISO14443 TYPE A
MIC	Sensitivity: -32±2d Output Impedance: 2.2kΩx1
SPEAKER	8Ω1.5 Watt
Sensor	1. Light sensor 2. Acceleration sensor 3. Gravity sensor
Size	23414416.8mm
Weight	700±50g
Language	Multi language
Interface In/Out Port	1. HDMI1 2. SIM Card Slot1 3. RS2321(mini-USB) 4. Earphone1 5. DC1: 4.015mm 6. USB 3.0 *3	Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232
Button	V+ -, Power, "F" for Barcode Scan	Customized Button: P, H (Default No Functionality)
1D/2D Barcode	Optional	NLS-N1 Optional M1 Optional SE2707 Optional
UHF RFID	Optional	American standard M500 (902Mhz–928Mhz) External: card reading distance of 3-5M
UHF RFID	Optional	European standard M500 (865MHz–868MHz) External: Card reading distance of 3-5M
Fingerprint	Optional	ZAZ-0A0 Optional 1020A Optional
High Precision GPS	Optional	UM960
Accessories	1. Blue Box 2. DC Charger (12V 4A) 3. Wrist strap 4. Screw	Optional: 1. Docking Station 2. Car Holder 3. Car Docking
Multi-Media (Hardware Decoding)	1. Photo Viewer:BMP, JPG, GIF, PNG 2. Video Format:MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format:MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license)
Proof Degree	Anti-dust & WaterproofIP65 Dropping Resistance 1.2 meter
Certification	1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C
Temperature	Storate Temperature:-25 °C to 80 °C Operation Temperature:-20 °C to 55°C

Country/region

Language

Rugged Windows tablet 8 inch Intel Celeron N5100 RAM 8GB ROM 256GB, rugged tablet, Industrial tablet with 2D scanner ST9-J
